S serie (High Speed)
| Data Carrier (8K byte) | ||||||
|---|---|---|---|---|---|---|
| Image |  |
 |
||||
| Size | 52x32x11 | 40x80x22 | ||||
| Material | PBT | POM | ||||
| Type | S1-D011-8K | S1-D021-8K | ||||
| Memory Type | 8Kbyte/FRAM | 8Kbyte/FRAM | ||||
| Operation distance | Max:20mm | Max:50mm | ||||

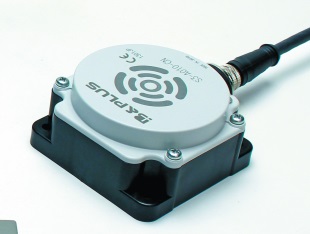

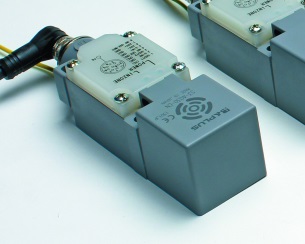

| Read/Write Head (Cable Type) | Read/Write Head (Connector Type) | |||||
|---|---|---|---|---|---|---|
| Image |  |
 |
 |
|
|
|
| Type | S3-A020-PU_ S3-A020-PU_D |
S3-A030-PU_ S3-A030-PU_D |
S3-A010-PU_ S3-A010-PU_D |
S3-A020-CN | S3-A030-CN | S3-A010-CN |
| Size | 40x40x140 | 40x40x140 | 80x118x40 | 40x40x133 | 40x40x133 | 80x104x40 |
| Applicable Data carrier | S1-D011-8K | S1-D011-8K | S1-D011-8K S1-D021-8K |
S1-D011-8K | S1-D011-8K | S1-D011-8K S1-D021-8K |

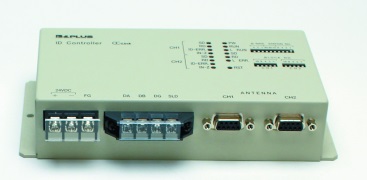

| Processor | PC-Unit | |||||
|---|---|---|---|---|---|---|
| Image |  |
 |
Image |  |
 |
|

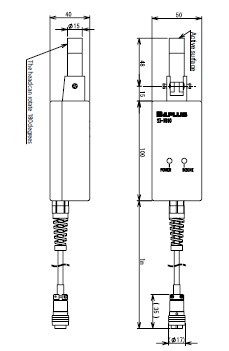

| Type | S4-Q001 | S4-C001 | Image | S3-H010 | S6-U001 | |
| Number of head |
2CH | 2CH | - | - | - | |
| Host Device |  |
 |
Host Device | - |  |
|
| Accessories | ||||||
|---|---|---|---|---|---|---|
| Image |  |
 |
 |
 |
||
| Figure | M12 straight | M12 angle | M12 straight | M12 angle | ||
| Type Code | S7-A001-PU_ | S7-A002-PU_ | S7-A003-PU_ | S7-A004-PU_ | ||
| Applicable Processor | S4-Q001 | S4-Q001 | S4-C001 | S4-C001 | ||
