Remote sensor system

—Provides wireless power supply and transmits detection signals—

What is a remote sensor system?

Remote sensor system

A remote sensor system supplies power wirelessly and transmits detection signals. Power is wirelessly supplied to a sensor (or some other part) attached to a moving unit, driving the sensor. The signal inputted by the sensor is then transmitted to a stationary unit. Models are available for switch and analog signals, and layouts include ring and compact designs. Also look for the spatter resistant model.

Switch signal DC 3-wire types

Compatible with standard switches

DC-3Wire types
DC-3Wire types RPT 1804 / RPE 1804 DC-3Wire types RPT 3008 / RPE 3008 DC-3Wire types RPTA 1803 / RPEA 1803 DC-3Wire types RPTA 3005 / RPEA 3005 DC-3Wire types RGPT 3005 / RGPE 3005
Type RPT-1804
RPE-1804
RPT-3008
RPE-3008
RPTA-1803
RPEA-1803
RPTA-3005
RPEA-3005
RGPT-3005
RGPE-3005
Sensor type Sensor type DC-3W Sensor type DC-3W Sensor type DC-3W Sensor type DC-3W Sensor type DC-3W
No. of transmission signals 1 1 4 4 8
Output ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF
Operation distance 4 mm 8 mm 3 mm 5 mm 5 mm
Size M18 M30 M18 M30 M30
Power 12 V/30 mA 12 V/30 mA 12 V/30 mA 12 V/40 mA 12 V/150 mA
Spec sheet Download Download Download Download Download
DC 3-wire types RGPT 4008 / RGPE 4008 DC 3-wire types RPTA 8015 / RPEA 8015 DC 3-wire types RGPT 9012 / RGPE 9012 DC 3-wire types RPT8-TSLOT / RPE8-TSLOT DC 3-wire types RS04T-F1 / RS04E-F1N

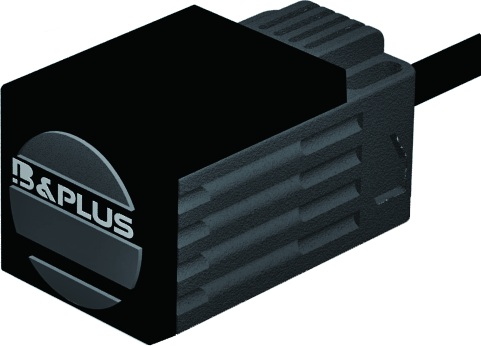

Type RGPT-4008
RGPE-4008
RPTA-8015
RPEA-8015
RGPT-9012
RGPE-9012
RPT8-TSLOT
RPE8-TSLOT
RS04T-F1
RS04E-F1N
Sensor type Sensor type DC-3W Sensor type DC-3W Sensor type DC-3W Sensor type DC-3W Sensor type DC-3W
No. of transmission signals 8 8 8 8 4
Output ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF
Operation distance 8 mm 22 mm 12 mm 5 mm 3 mm
Size 40 x 40 mm 80 x 80 mm 90 x 90 mm 40 x 40 mm 35 x 35 mm
Power 12 V/200 mA 12 V/100 mA 24 V/300 mA 12 V/150 mA 12 V/60 mA
Spec sheet Download Download Download Download Download

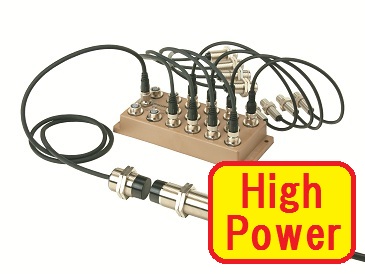

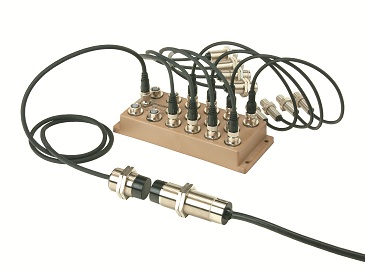

DC 3-wire types RS12T 422 / RS12E 422 DC 3-wire types RS8TA 222P S04 / RSH8T 030 / RSH8E 030 DC 3-wire types RS16TA 211P S04 / RSH16T-030 / RSH16E 030 DC 3-wire types High Power RS16TB 211P S04 / RSH16TB-030 / RSH16EB-030
Type RS12T-422
RS12E-422
RS8TA-222P-S04
RSH8T-030
RSH8E-030
RS16TA-211P-S04
RSH16T-030
RSH16E-030
RS16TB-211P-S04
RSH16TB-030
RSH16EB-030
Sensor type Sensor type DC-3W Sensor type DC-3W Sensor type DC-3W Sensor type DC-3W
No. of transmission signals 12 8 16 16
Output ON/OFF ON/OFF ON/OFF ON/OFF
Operation distance 5 mm 8 mm 8 mm 5 mm
Size 45 x 45 mm M30 M30 M30
Power 12 V/230 mA 12 V/150 mA 12 V/150 mA 24 V/550 mA
Spec sheet Download Download Download Download

Switch signal DC 2-wire types

Can be connected with DC 2-wire or a mechanical limit switch through resistor

DC-2Wire types
DC 2-wire types RPT 1202D/ RPE 1202 DC 2-wire types RPT 1804D/ RPE-1804 DC 2-wire types RPT 3008D/ RPE 3008 DC 2-wire types RPT-F0D / RPE-F0 DC 2-wire types RPT2 1804D /RPE2 1804
Type RPT-1202D
RPE-1202
RPT-1804D
RPE-1804
RPT-3008D
RPE-3008
RPT-F0D
RPE-F0
RPT2-1804D
RPE2-1804
Sensor type Sensor type DC-2W Sensor type DC-2W Sensor type DC-2W Sensor type DC-2W Sensor type DC-2W
No. of transmission signals 1 1 1 1 2
Output ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF
Operation distance 2 mm 4 mm 8 mm 1.5 mm 4 mm
Size M12 M18 M30 50 x 25 x 10 mm M18
Power 12 V/5 mA 12 V/5 mA/1 signal 12 V/5 mA/1 signal 12 V/5 mA/1 signal 12 V/5 mA/1 signal
Spec sheet Download Download Download Download Download
DC 2-wire types - RPT2 3005D /RPE2 3005 DC 2-wire types - RPT4 1803D /RPE4 1803 DC 2-wire types - RPT4 3005D /RPE4 3005 DC 2-wire types - RPT8 1803D /RPE8 1800 DC 2-wire types - RPT8 3007D /RPE8 3000
Type RPT2-3005D
RPE2-3005
RPT4-1803D
RPE4-1803
RPT4-3005D
RPE4-3005
RPT8-1803D
RPE8-1800
RPT8-3007D
RPE8-3000
Sensor type Sensor type DC-2W Sensor type DC-2W Sensor type DC-2W Sensor type DC-2W Sensor type DC-2W
No. of transmission signals 2 4 4 8 8
Output ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF
Operation distance 5 mm 3 mm 5 mm 3 mm 7 mm
Size M30 M18 M30 M18 M30
Power 12 V/5 mA/1 signal 12 V/5 mA/1 signal 12 V/5 mA/1 signal 12 V/5 mA/1 signal 12 V/5 mA/1 signal
Spec sheet Download Download Download Download Download
DC 2-wire types - High templature - RS08TA 018D /RS08EA 018 DC 2-wire types - High templature - RS08TA 030D /RS08EA 030 DC 2-wire types - RPT15 3005D /RPE15 3000 DC 2-wire types - RPT15 3005D /RPE15 3000 DC 2-wire types - RS15T-R03D / RS15E-R03
Type RS08TA-018D
RS08EA-018
RS08TA-030D
RS08EA-030
RPT15-3005D
RPE15-3000
RS15T-R01D
RS15E-R02
RS15T-R03D
RS15E-R03
Sensor type Sensor type DC-2W Sensor type DC-2W Sensor type DC-2W Sensor type DC-2W Sensor type DC-2W
No. of transmission signals 8 8 15 15 15
Output ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF
Operation distance 3 mm 7 mm 5 mm 6.5 mm 7 mm
Size M18 M30 M30 Φ116 Φ175
Power 12 V/5 mA/1 signal 12 V/5 mA/1 signal 12 V/5 mA/1 signal 12 V/5 mA/1 signal 12 V/5 mA/1 signal
Spec sheet Download Download Download Download Download
DC 2-wire types RS8TA 222D S04 / RSH8T 030 / RSH8E 030 DC 2-wire types RS16TA-211D-S04 / RSH16TB-030 / RSH16EB-030
Type RS8TA-222D S04
RSH8T-030
RSH8E-030
RS16TA-211D-S04
RSH16TB-030
RSH16EB-030
Sensor type Sensor type DC-2W Sensor type DC-2W
No. of transmission signals 8 16
Output ON/OFF ON/OFF
Operation distance 8 mm 8 mm
Size M30 M30
Power 22V/ 5mA/1signal 22V/ 5mA/1signal
Spec sheet Download Download

The following options are available

Anti-weld slag

Anti-weld slag

The fluorine resin-coated housing and fluorine resin cap make weld splatter less likely to stick.

Pre-wired connector

Pre-wired connector

The pre-molded M12 connector simplifies the wiring process.
Transmitter: female, output sensor: male
Standard cable length: 30 cm

Analog sensor types / load cell types /
resistance thermometer sensor types / thermocouple types

-Analog sensor types
Supplies power to an analog sensor and outputs an analog value between 0 and 10 V.
-Load cell types
Measures data from a load cell, and outputs an analog value between 4 and 20 mA.
-Resistance thermometer sensor types
Measures data from a resistance thermometer, and outputs an analog value between 4 and 20 mA.
-Thermocouple types
Measures data from a thermocouple and outputs an analog value between 4 and 20 mA.
Analog signal types
Analog signal types - RTT 1804 PT1B30/ RTE 1804 Analog signal types - RTT 1804 LC10/RTE 1804 Analog signal types - RNT 1803 VS10/RNE 1803A Analog signal types - RS02T-018-J/RS02E 018E Analog signal types - RS02T 30 K300/RS02E 030E

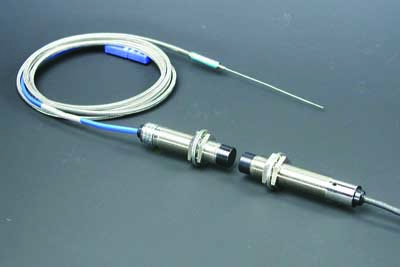

Type RTT-1804-PT1B30
RTE-1804

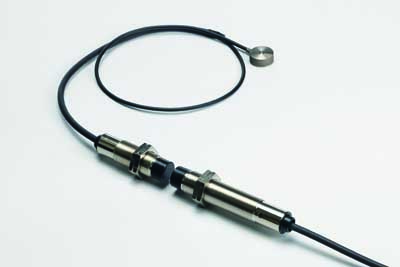

RTT-1804-LC10
RTE-1804
RNT-1803 VS10
RNE- 1803A

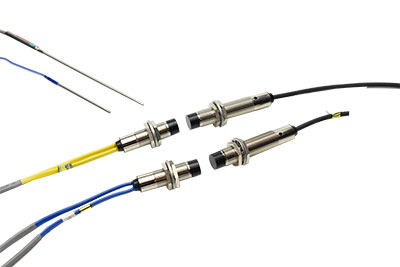

RS02T-018-J
RS02E-018E
RS02T-30-K300
RS02E-030E
Sensor type Sensor type - Pt100 Sensor type - Sensor type - 0...10V Sensor type - J Sensor type - K
No. of transmission signals 1 1 1 2 2
Output 4-20 mA 4-20 mA 0-10 V 4-20 mA 4-20 mA
Operation distance 4 mm 4 mm 4 mm 4 mm 6 mm
Size M18 M18 M18 M18 M30
Spec sheet Download Download Download Download Download
Analog signal types - RTT-1804-PT1B30 / RTE-1804 Analog signal types - RTT-1804-LC10 / RTE-1804 Analog signal types - RNT-1803 VS10 / RNE- 1803A Analog signal types - RSH080T 422 CN RSH080E 422R CN RS080T 233 RS801E 234E Analog signal types - RSH080T R01 CN RSH080E R01R CN RS080T 233 RS801E 234E
Type RS02T-R01-K300
RS02E-R01E
RS02T-R01-K1000
RS02E-R01E
RS02T-R01-J300
RS02E-R01E

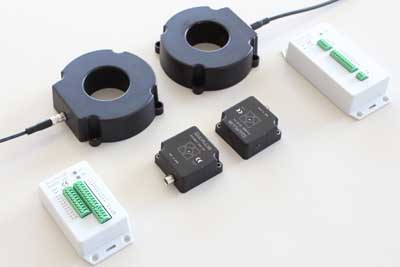

RSH080T-422-CN
RSH080E-422R-CN
RS080T-233
RS801E-234E
RSH080T-R01-CN
RSH080E-R01R-CN
RS080T-233
RS801E-234E
Sensor type Sensor type - K Sensor type - K Sensor type - J Thermocouple/resistance thermometer/thermistorr Thermocouple/resistance thermometer/thermistor
No. of transmission signals 2 2 2 8 8
Output Temperature Temperature Temperature Temperature Temperature
Operation distance 8 mm 8 mm 8 mm 3 mm 6 mm
Size Φ116 Φ116 Φ116 55 x 55 mm Φ116
Spec sheet Download Download Download Download Download
Analog signal types - RS02E-R03E-PU-02 / RS02T-R03-K300
Type RS02E-R03E-PU-02
RS02T-R03-K300
Sensor type Sensor type - K
No. of transmission signals 2
Output 4-20 mA
Operation distance 15 mm
Size Φ175
Spec sheet Download

Terminal boxes

Terminal boxes
Terminal boxes - RPK-2102 Terminal boxes - RPK-2101 Terminal boxes - RPK-2103 Terminal boxes - RPK-A098-02 Terminal boxes - RPK-A098-03
Type RPK-2102 RPK-2101 RPK-2103 RPK-A098-02 RPK-A098-03
Connection number 4 8 8 8 8
Note DC3 Wire・DC2 wire DC3 Wire・DC2 wire DC3 Wire・DC2 wire DC3 Wire・DC2 wire DC3 Wire・DC2 wire
Spec sheet Download Download Download Download Download
Terminal boxes - RPK-B148-02 Terminal boxes - RPK-4C01_ Terminal boxes - RPK-8C01_ Terminal boxes - RPK-8C01L_ Terminal boxes - RFK-8C01
Type RPK-B148-02 RPK-4C01_ RPK-8C01_ RPK-8C01L_ RFK-8C01
Connection number 8 4 8 8 8
Note DC3 Wire・DC2 wire DC3 Wire・DC2 wire DC3 Wire・DC2 wire RGPT-xxxx RXT8
Spec sheet Download Download Download Download Download
