RFID System

RFID System - Easy RFID / 8bit
  • Complex configuration and ladder program are not required.
  • 8 bit parallel output by just facing.
  • Simply writing by Reader/writer.
  • Comply with ISO 15693 standard.
  • Line-up of Data carrier for various
  • intended use.
RFID System - Z serie (Low cost tag)
  • Good cost performance.
  • Replace from Mitsubishi Electric RFID system.
  • Comply with ISO 15693 standard.
  • Line-up of Data carrier for various intended use.

Easy RFID / 8bit

Features

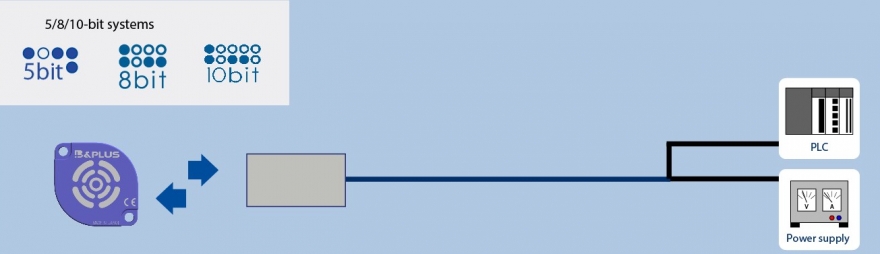

Simply orient the system. No controller is needed for 8-bit data parallel output. No special program or ladder required.
Low-cost and easy to install

 Easy RFID 5/8-bit systems

ID tag

See our lineup below

ID read/write system

See our lineup below


 Easy RFID Read/write systems

ID tag

See our lineup below

ID read/write system

Z6-01-R
Serial RS-232C connection
Size:D20xW72xH120 mm

ID read/write system

Z6-01-U
USB connection
Size:D20xW72xH120 mm

Tags (ISO15693 standard:13.56MHz)
Choose from our lineup
Image ID tag Z11-AA04-2K ID tag Z1-EA02-128 ID tag Z1-EC02-128 ID tag Z1-FA01-128 ID tag Z1-FB01-128 ID tag Z1-B011-128
Size 30 x 30 x 6 mm φ9.5 x 27 mm φ26 x 3.4 mm φ16 x 0.9 mm φ28 x 3.4 mm φ50 x 8.3 mm
Material PBT Zirconia ceramic Almina ceramic Glass fiber cloth Glass fiber cloth PA6
Type Z11-AA04-2K Z1-EA02-128 Z1-EC02-128 Z1-FA01-128 Z1-FB01-128 Z1-B011-128
Memory Type 2Kbyte/FRAM 112byte/EEPROM 112byte/EEPROM 112byte/EEPROM 112byte/EEPROM 112byte/EEPROM
Operation distance Max: 34 mm Max: 7 mm Max: 42 mm Max: 35 mm Max: 60 mm Max: 54 mm
Spec sheet Download


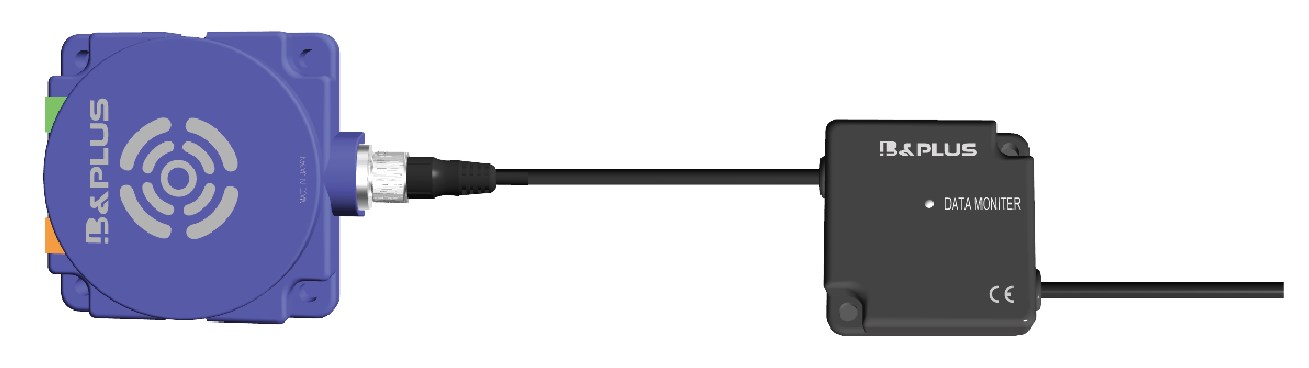

ID Antenna
Choose from our lineup
Image id antenna Z5-EA05.jpg id antenna Z5-AA01N/P-PU id antenna Z5-AA03N/P-PU id antenna Z5-CA05-PU_ _
Type Z5-EA05N/P-PU__ Z5-AA01N/P-PU__ Z5-AA03N/P-PU__ Z5-A010-CN
Z5-CA01N/P-PU__
Z5-A010-CN
Z5-DA01N/P-PU__
Output type Pararell 5-bit output Pararell 8-bit output Pararell 8-bit output Pararell 8-bit output Pararell 10-bit output
Size D10xW25xH50 mm M30xH74.5 mm D25xW45xH45 mm D30xW80xH180 mm
D25xW55xH55 mm
D30xW80xH180 mm
D25xW55xH55 mm
Spec sheet Download Download Download Download Download

Z series

Features
Ready for use with MELSEC-Q and CC-Link. With high cost performance, this is ideal for replacing Mitsubishi Electric’s ID systems. ISO 15693-compliant

RFID System - iqr melsec

ID tag

See our lineup below

ID antenna

Z3-A010-CN

Connector connection

Size: D30xW80xH80 mm

ID cable

Z7-A009A-PU(RB)__

Straight M12

Z7-A010A-PU(RB)__

Angular M12

ID controller

MELSEC-iQR
Z4-IQR001

RFID System - melsecQ

ID tag

See our lineup below

ID antenna

Z3-A010-CN

Connector connection

Size: D30xW80xH80 mm

ID cable

Z7-A001A-PU(RB)__

Straight M12

Z7-A002A-PU(RB)__

Angular M12

ID controller

Z4-Q001
Z4-Q002
Compatible with Mitsubishi Electric’s ID interface commands

Z Seriese - CC Link

ID tag

See our lineup below

ID antenna

Z3-A010-CN

Connector connection

Size: D30xW80xH80 mm

ID cable

Z7-A005A-PU(RB)__

Straight M12

Z7-A006A-PU(RB)__

Angular M12

ID controller

Z4-C001
Z4-C002
Compatible with
Mitsubishi Electric’s
ID interface commands

Z Seriese - RS-232C

ID tag

See our lineup below

ID antenna

Z3-R010-CN

Connector connection

Size: D30xW80xH80 mm

ID cable

Z7-A001A-PU(RB)__

Straight M12

Z7-A02A-PU(RB)__

Angular M12

Z7-A007-C1


Tags (ISO15693 standard:13.56MHz)
Choose from our lineup
Image ID tag Z11-AA04-2K ID tag Z1-EC02-128 ID tag Z1-FA01-128 ID tag Z1-FB01-128 ID tag Z1-B011-128
Size 30 x 30 x 6 mm φ26 x 3.4 mm φ16 x 0.9 mm φ28 x 3.4 mm φ50 x 8.3 mm
Material PBT Almina ceramic Glass fiber cloth Glass fiber cloth PA6
Type Z11-AA04-2K Z1-EC02-128 Z1-FA01-128 Z1-FB01-128 Z1-B011-128
Memory Type 2Kbyte/FRAM 112byte/EEPROM 112byte/EEPROM 112byte/EEPROM 112byte/EEPROM
Operation distance Max: 34 mm Max: 42 mm Max: 35 mm Max: 60 mm Max: 54 mm
Spec sheet Download


S Series

Features
High-speed specifications for faster communication than the Z series. A number of interfaces are available for connecting the ID controller directly to the upstream device.
Providing 8 KB, the largest capacity ID tag

S Seriese - melsecQ

ID tag

S1-D011-8K
8K-bite/FRAM
Size: D11xW32xH52 mm
S1-D021-8K
8K-bite/FRAM
Size: D22xW40xH80 mm

ID antenna

See our lineup below

ID cable

S7-A001A-PU(RB)__
Straight M12
S7-A002A-PU(RB)__
Angular M12

ID controller

S4-Q001

S Seriese - CC Link

ID tag

S1-D011-8K
8K-bite/FRAM
Size: D11xW32xH52 mm
S1-D021-8K
8K-bite/FRAM
Size: D22xW40xH80 mm

ID antenna

See our lineup below

ID cable

S7-A003A-PU(RB)_ _
Straight M12
S7-A004A-PU(RB)_ _
Angular M12

ID controller

S4-Q001

S Seriese - Computer unit

ID tag

S1-D011-8K
8K-bite/FRAM
Size: D11xW32xH52 mm
S1-D021-8K
8K-bite/FRAM
Size: D22xW40xH80 mm

Antenna unit

S3-H010

Control unit

S6-U001

ID Antenna
Choose from our lineup
Image id antenna S3-A010-PU_ _ id antenna S3-A010-PU-CN id antenna S3-A010-PU_ _-D id antenna S3-A020-PU_ _ id antenna S3-A020-PU-CN
Type S3-A010-PU_ _ S3-A010-PU-CN S3-A010-PU_ _-D S3-A020-PU_ _ S3-A020-PU-CN
Antenna type Cable type Connector type D-sub connector type Cable type Connector type
Size D40xW80xH80 mm D40xW80xH80 mm D40xW80xH80 mm D40xW40xH140 mm D40xW40xH140 mm
Spec sheet Download Download Download Download Download
Image id antenna S3-A020-PU_ _-D id antenna S3-A030-PU_ _ id antenna S3-A030-PU-CN id antenna S3-A030-PU_ _-D
Type S3-A020-PU_ _-D S3-A030-PU_ _ S3-A030-PU-CN S3-A030-PU_ _-D
Antenna type D-sub connector type Cable type Connector type D-sub connector type
Size D40xW40xH140 mm D40xW40xH140 mm D40xW40xH140 mm D40xW40xH140 mm
Spec sheet Download Download Download Download
